Motion eMPS

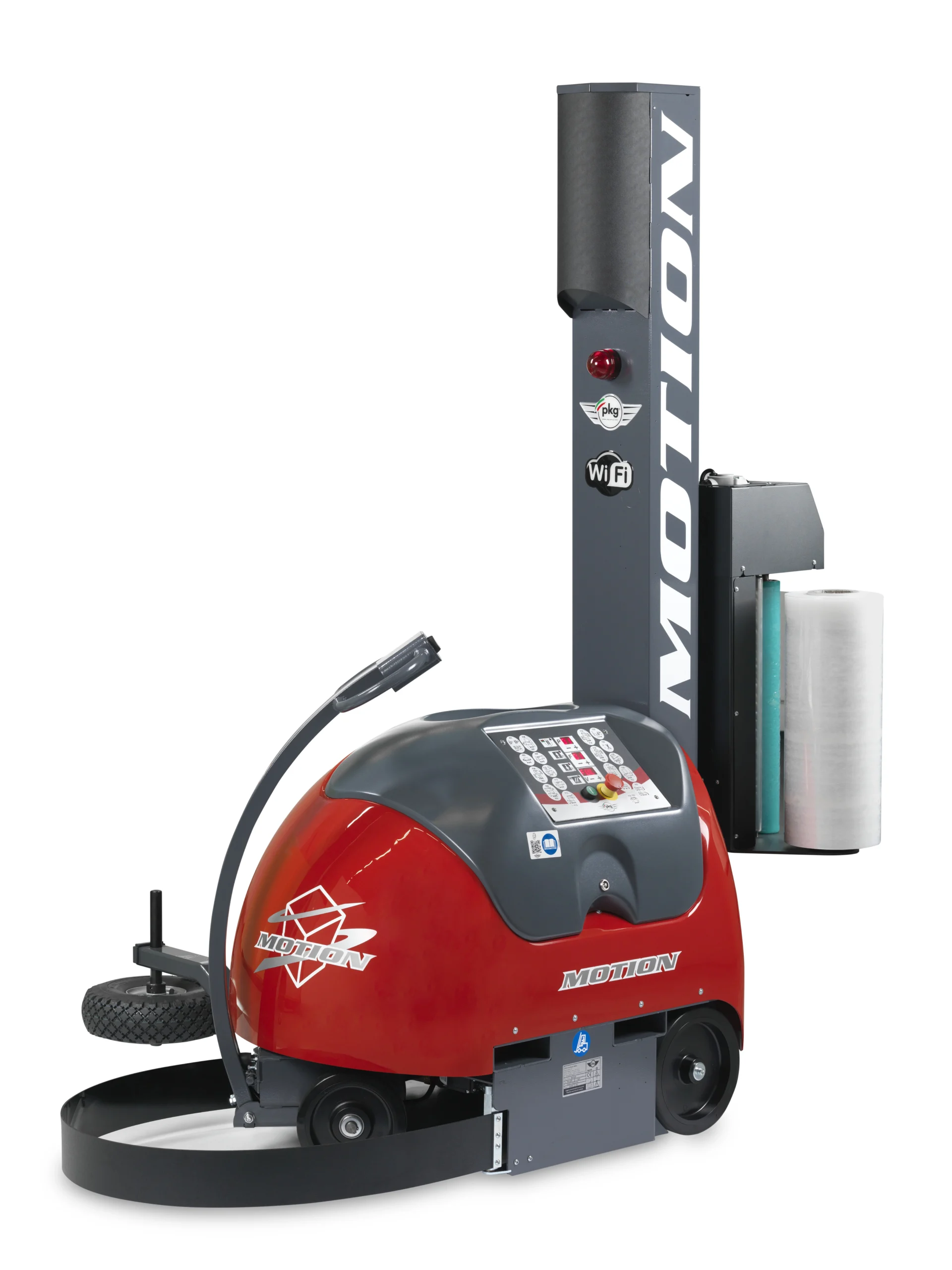

Motion is the ready-for-anything machine!
A self-propelled wrapping machine for wrapping pallets of any size, weight and shape.

Perfect for using either stretch film or netting.

Table

	Motion
	min	MAX
L	400	∞
W	400	∞
H	500	2200
H (option)	500	2400
H (option)	500	2700
H (option)	500	3000
H (option)	500	3500
Kg	50	∞

Tecnical Features

Type

Robot

Model

Motion

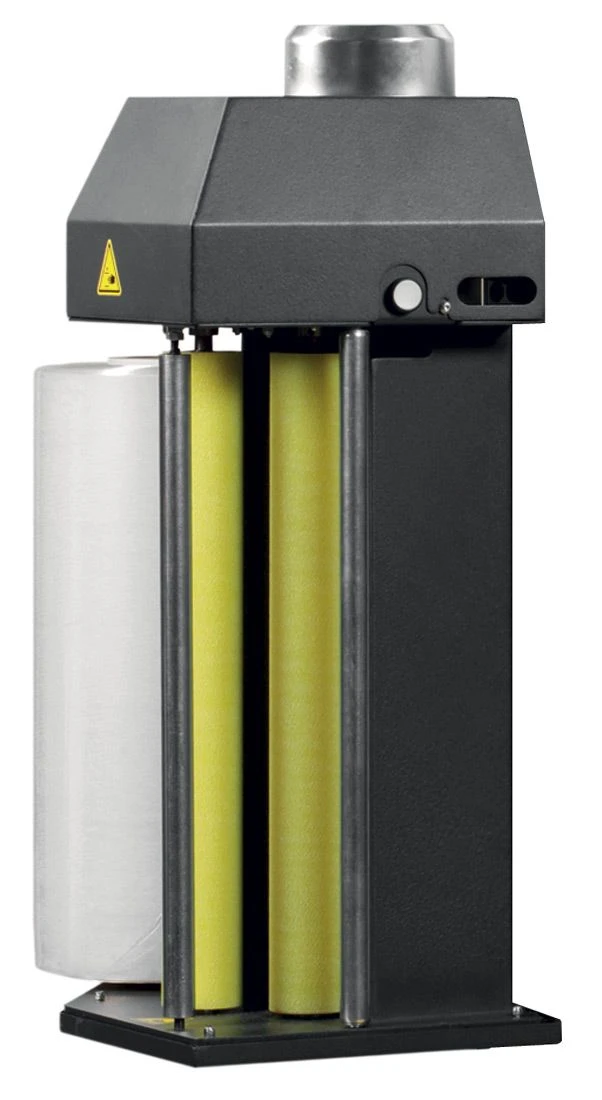

Carriage

eMPS

Standard Plate (mm)

n.a.

Optional Plate (mm)

n.a.

Standard max weight (kg)

n.a.

Optional Max weight (kg)

n.a.

Height detention (mm)

Automatic by photocell

Standard Wrapping height (mm)

2.200

Optional Wrapping height (mm)

2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

10 ÷ 150

Programs (P.)

99

Rotation speed (rpm - m/min)

16 ÷ 80 m/min

Carriage speed (m/min)

2,0 ÷ 5,0

Tension regulations

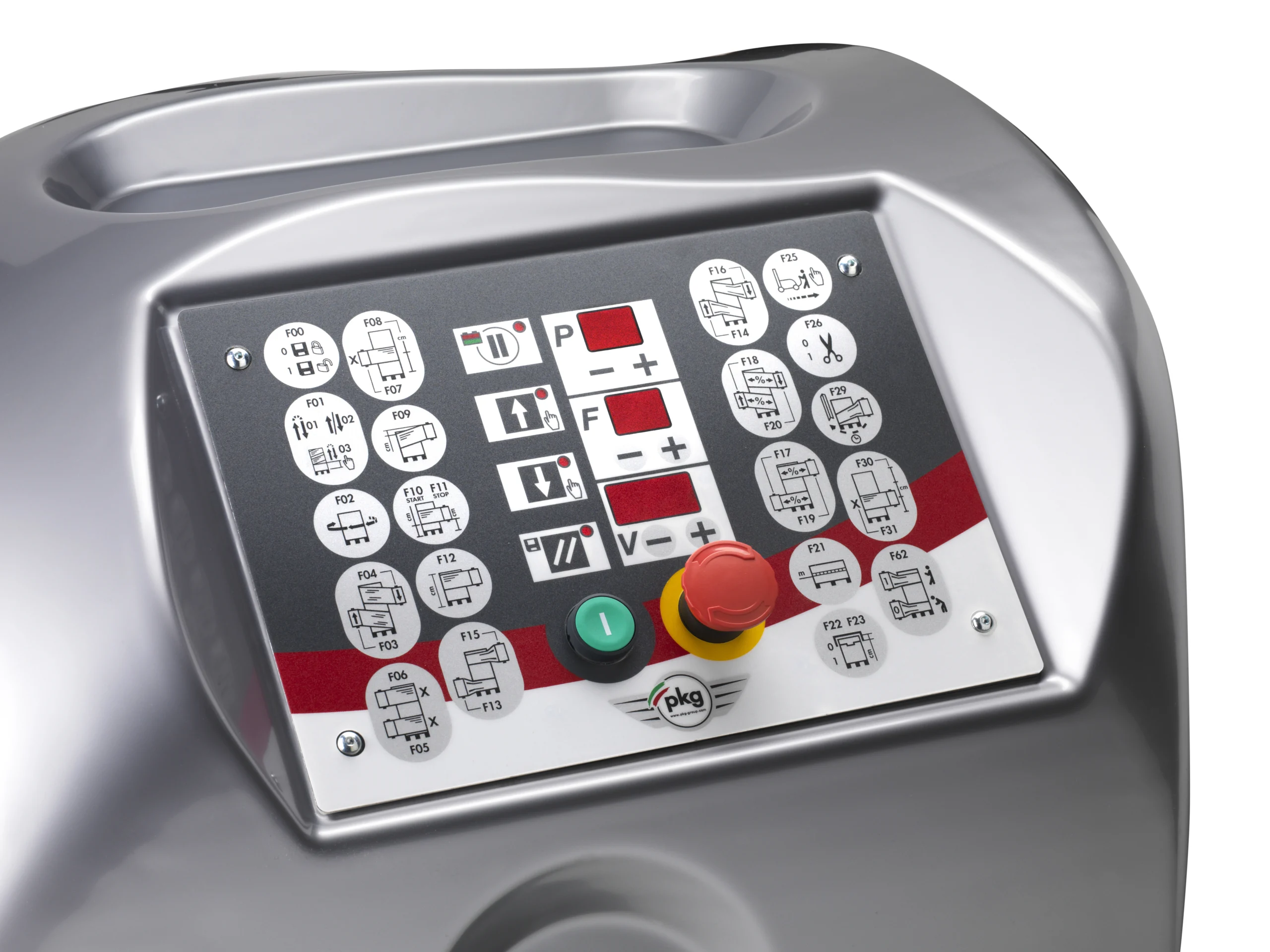

5 different position from panel

Pre-strech regulations

Fixed std. 200% - opt. 150,250,300%

Power

230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

16

Max coil dimension (mm)

D. 260 - H.500

Fork entrance for machine transport

Lateral

Tipologia di batteria

AGM 2 x 12V - 100Ah

Quantity of pallets per load

160

Air blow system for automatic start

No

Varianti di Motion

Motion eMPS

Comparison

Scegli il prodotto da comparare con Motion eMPS

Motion eMPS

Saving Machine MB

Type

Motion eMPS - Robot

Saving Machine MB - Turntable

Model

Motion eMPS - Motion

Saving Machine MB - Saving

Carriage

Motion eMPS - eMPS

Saving Machine MB - MB

Standard Plate (mm)

Motion eMPS - n.a.

Saving Machine MB - 1500

Optional Plate (mm)

Motion eMPS - n.a.

Saving Machine MB - 1652 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Standard max weight (kg)

Motion eMPS - n.a.

Saving Machine MB - 2000

Optional Max weight (kg)

Motion eMPS - n.a.

Saving Machine MB - 3000. 1200 per TP / SLIM

Height detention (mm)

Motion eMPS - Automatic by photocell

Saving Machine MB - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Saving Machine MB - 2.450

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Saving Machine MB - 3200 - 2200, 2700, 3500, 3900

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Saving Machine MB - 5 ÷ 40

Programs (P.)

Motion eMPS - 99

Saving Machine MB - 6

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Saving Machine MB - 4 ÷ 12

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Saving Machine MB - 1,3 ÷ 4,0

Tension regulations

Motion eMPS - 5 different position from panel

Saving Machine MB - Manually from the carriage

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Saving Machine MB - n.a.

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Saving Machine MB - 230V - 50Hz - 10A - 0,8 kW

Max coil weight (kg)

Motion eMPS - 16

Saving Machine MB - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Saving Machine MB - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Saving Machine MB - Front + Back

Quantity of pallets per load

Motion eMPS - 160

Saving Machine MB - n.a.

Air blow system for automatic start

Motion eMPS - No

Saving Machine MB - No

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Saving Machine MB - -

Motion eMPS

Saving Machine eMPS

Type

Motion eMPS - Robot

Saving Machine eMPS - Turntable

Model

Motion eMPS - Motion

Saving Machine eMPS - Saving

Carriage

Motion eMPS - eMPS

Saving Machine eMPS - eMPS

Standard Plate (mm)

Motion eMPS - n.a.

Saving Machine eMPS - 1500

Optional Plate (mm)

Motion eMPS - n.a.

Saving Machine eMPS - 1654 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Standard max weight (kg)

Motion eMPS - n.a.

Saving Machine eMPS - 2000

Optional Max weight (kg)

Motion eMPS - n.a.

Saving Machine eMPS - 3000. 1200 per TP / SLIM

Height detention (mm)

Motion eMPS - Automatic by photocell

Saving Machine eMPS - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Saving Machine eMPS - 2.450

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Saving Machine eMPS - 3200 - 2200, 2700, 3500, 3900

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Saving Machine eMPS - 10 ÷ 200

Programs (P.)

Motion eMPS - 99

Saving Machine eMPS - 6

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Saving Machine eMPS - 4 ÷ 12

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Saving Machine eMPS - 1,3 ÷ 4,0

Tension regulations

Motion eMPS - 5 different position from panel

Saving Machine eMPS - 5 different position from panel

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Saving Machine eMPS - Fixed std. 200% - opt. 150,250,300%

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Saving Machine eMPS - 230V - 50Hz - 10A - 0,8 kW

Max coil weight (kg)

Motion eMPS - 16

Saving Machine eMPS - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Saving Machine eMPS - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Saving Machine eMPS - Front + Back

Quantity of pallets per load

Motion eMPS - 160

Saving Machine eMPS - n.a.

Air blow system for automatic start

Motion eMPS - No

Saving Machine eMPS - No

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Saving Machine eMPS - -

Motion eMPS

Simply

Type

Motion eMPS - Robot

Simply - Turntable

Model

Motion eMPS - Motion

Simply - Simply

Carriage

Motion eMPS - eMPS

Simply - MB

Standard Plate (mm)

Motion eMPS - n.a.

Simply - 1500

Optional Plate (mm)

Motion eMPS - n.a.

Simply - 1650

Standard max weight (kg)

Motion eMPS - n.a.

Simply - 2000

Optional Max weight (kg)

Motion eMPS - n.a.

Simply - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Simply - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Simply - 2.200

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Simply - n.a.

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Simply - 5 ÷ 40

Programs (P.)

Motion eMPS - 99

Simply - 1

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Simply - 4 ÷ 12

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Simply - 2,0 ÷ 5,0

Tension regulations

Motion eMPS - 5 different position from panel

Simply - Manually from the carriage

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Simply - n.a.

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Simply - 230V - 50-60Hz - 10A

Max coil weight (kg)

Motion eMPS - 16

Simply - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Simply - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Simply - Front + Back

Quantity of pallets per load

Motion eMPS - 160

Simply - n.a.

Air blow system for automatic start

Motion eMPS - No

Simply - No

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Simply - -

Motion eMPS

Discovery MPS

Type

Motion eMPS - Robot

Discovery MPS - Turntable

Model

Motion eMPS - Motion

Discovery MPS - Discovery

Carriage

Motion eMPS - eMPS

Discovery MPS - MPS

Standard Plate (mm)

Motion eMPS - n.a.

Discovery MPS - 1500

Optional Plate (mm)

Motion eMPS - n.a.

Discovery MPS - 1650 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Standard max weight (kg)

Motion eMPS - n.a.

Discovery MPS - 2000

Optional Max weight (kg)

Motion eMPS - n.a.

Discovery MPS - 3000. 1200 per TP / SLIM

Height detention (mm)

Motion eMPS - Automatic by photocell

Discovery MPS - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Discovery MPS - 2.450

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Discovery MPS - 3200 - 2200, 2700, 3500, 3900

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Discovery MPS - 15 ÷ 240

Programs (P.)

Motion eMPS - 99

Discovery MPS - 99

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Discovery MPS - 4 ÷ 12

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Discovery MPS - 1,3 ÷ 4,0

Tension regulations

Motion eMPS - 5 different position from panel

Discovery MPS - 5 different position from panel

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Discovery MPS - Fixed std. 150,200,250% - opt. 300%

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Discovery MPS - 230V - 50Hz - 10A - 1,05 kW

Max coil weight (kg)

Motion eMPS - 16

Discovery MPS - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Discovery MPS - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Discovery MPS - Front + Back

Quantity of pallets per load

Motion eMPS - 160

Discovery MPS - n.a.

Air blow system for automatic start

Motion eMPS - No

Discovery MPS - Optional

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Discovery MPS - -

Motion eMPS

Discovery MPS2

Type

Motion eMPS - Robot

Discovery MPS2 - Turntable

Model

Motion eMPS - Motion

Discovery MPS2 - Discovery

Carriage

Motion eMPS - eMPS

Discovery MPS2 - MPS2

Standard Plate (mm)

Motion eMPS - n.a.

Discovery MPS2 - 1500

Optional Plate (mm)

Motion eMPS - n.a.

Discovery MPS2 - 1651 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Standard max weight (kg)

Motion eMPS - n.a.

Discovery MPS2 - 2000

Optional Max weight (kg)

Motion eMPS - n.a.

Discovery MPS2 - 3000. 1200 per TP / SLIM

Height detention (mm)

Motion eMPS - Automatic by photocell

Discovery MPS2 - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Discovery MPS2 - 2.450

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Discovery MPS2 - 3200 - 2200, 2700, 3500, 3900

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Discovery MPS2 - 15 ÷ 240

Programs (P.)

Motion eMPS - 99

Discovery MPS2 - 99

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Discovery MPS2 - 4 ÷ 12

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Discovery MPS2 - 1,3 ÷ 4,0

Tension regulations

Motion eMPS - 5 different position from panel

Discovery MPS2 - 5 different position from panel

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Discovery MPS2 - Variable in 5 positions, 120% to 400%

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Discovery MPS2 - 230V - 50Hz - 10A - 1,3 kW

Max coil weight (kg)

Motion eMPS - 16

Discovery MPS2 - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Discovery MPS2 - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Discovery MPS2 - Front + Back

Quantity of pallets per load

Motion eMPS - 160

Discovery MPS2 - n.a.

Air blow system for automatic start

Motion eMPS - No

Discovery MPS2 - Optional

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Discovery MPS2 - -

Motion eMPS

Saving Machine EB

Type

Motion eMPS - Robot

Saving Machine EB - Turntable

Model

Motion eMPS - Motion

Saving Machine EB - Saving

Carriage

Motion eMPS - eMPS

Saving Machine EB - EB

Standard Plate (mm)

Motion eMPS - n.a.

Saving Machine EB - 1500

Optional Plate (mm)

Motion eMPS - n.a.

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Standard max weight (kg)

Motion eMPS - n.a.

Saving Machine EB - 2000

Optional Max weight (kg)

Motion eMPS - n.a.

Saving Machine EB - 3000. 1200 per TP / SLIM

Height detention (mm)

Motion eMPS - Automatic by photocell

Saving Machine EB - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Saving Machine EB - 2.450

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Saving Machine EB - 5 ÷ 40

Programs (P.)

Motion eMPS - 99

Saving Machine EB - 6

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Saving Machine EB - 4 ÷ 12

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Saving Machine EB - 1,3 ÷ 4,0

Tension regulations

Motion eMPS - 5 different position from panel

Saving Machine EB - 5 different position from panel

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Saving Machine EB - n.a.

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Saving Machine EB - 230V - 50-60Hz - 10A

Max coil weight (kg)

Motion eMPS - 16

Saving Machine EB - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Saving Machine EB - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Saving Machine EB - Front + Back

Quantity of pallets per load

Motion eMPS - 160

Saving Machine EB - n.a.

Air blow system for automatic start

Motion eMPS - No

Saving Machine EB - No

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Saving Machine EB - -

Motion eMPS

Smartwrap

Type

Motion eMPS - Robot

Smartwrap - n.a.

Model

Motion eMPS - Motion

Smartwrap - n.a.

Carriage

Motion eMPS - eMPS

Smartwrap - n.a.

Standard Plate (mm)

Motion eMPS - n.a.

Smartwrap - n.a.

Optional Plate (mm)

Motion eMPS - n.a.

Smartwrap - n.a.

Standard max weight (kg)

Motion eMPS - n.a.

Smartwrap - n.a.

Optional Max weight (kg)

Motion eMPS - n.a.

Smartwrap - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Smartwrap - n.a.

Standard Wrapping height (mm)

Motion eMPS - 2.200

Smartwrap - n.a.

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Smartwrap - n.a.

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Smartwrap - n.a.

Programs (P.)

Motion eMPS - 99

Smartwrap - n.a.

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Smartwrap - n.a.

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Smartwrap - n.a.

Tension regulations

Motion eMPS - 5 different position from panel

Smartwrap - n.a.

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Smartwrap - n.a.

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Smartwrap - n.a.

Max coil weight (kg)

Motion eMPS - 16

Smartwrap - n.a.

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Smartwrap - n.a.

Fork entrance for machine transport

Motion eMPS - Lateral

Smartwrap - n.a.

Quantity of pallets per load

Motion eMPS - 160

Smartwrap - n.a.

Air blow system for automatic start

Motion eMPS - No

Smartwrap - n.a.

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Smartwrap - -

Motion eMPS

Motion EB

Type

Motion eMPS - Robot

Motion EB - Robot

Model

Motion eMPS - Motion

Motion EB - Motion

Carriage

Motion eMPS - eMPS

Motion EB - EB

Standard Plate (mm)

Motion eMPS - n.a.

Motion EB - n.a.

Optional Plate (mm)

Motion eMPS - n.a.

Motion EB - n.a.

Standard max weight (kg)

Motion eMPS - n.a.

Motion EB - n.a.

Optional Max weight (kg)

Motion eMPS - n.a.

Motion EB - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Motion EB - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Motion EB - 2.200

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Motion EB - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Motion EB - 5 ÷ 40

Programs (P.)

Motion eMPS - 99

Motion EB - 99

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Motion EB - 16 ÷ 80 m/min

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Motion EB - 2,0 ÷ 5,0

Tension regulations

Motion eMPS - 5 different position from panel

Motion EB - 5 different position from panel

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Motion EB - n.a.

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Motion EB - 230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

Motion eMPS - 16

Motion EB - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Motion EB - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Motion EB - Lateral

Quantity of pallets per load

Motion eMPS - 160

Motion EB - 170

Air blow system for automatic start

Motion eMPS - No

Motion EB - No

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Motion EB - -

Motion eMPS

Motion MB

Type

Motion eMPS - Robot

Motion MB - Robot

Model

Motion eMPS - Motion

Motion MB - Motion

Carriage

Motion eMPS - eMPS

Motion MB - MB

Standard Plate (mm)

Motion eMPS - n.a.

Motion MB - n.a.

Optional Plate (mm)

Motion eMPS - n.a.

Motion MB - n.a.

Standard max weight (kg)

Motion eMPS - n.a.

Motion MB - n.a.

Optional Max weight (kg)

Motion eMPS - n.a.

Motion MB - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Motion MB - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Motion MB - 2.200

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Motion MB - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Motion MB - 5 ÷ 40

Programs (P.)

Motion eMPS - 99

Motion MB - 99

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Motion MB - 16 ÷ 80 m/min

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Motion MB - 2,0 ÷ 5,0

Tension regulations

Motion eMPS - 5 different position from panel

Motion MB - Manually from the carriage

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Motion MB - n.a.

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Motion MB - 230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

Motion eMPS - 16

Motion MB - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Motion MB - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Motion MB - Lateral

Quantity of pallets per load

Motion eMPS - 160

Motion MB - 180

Air blow system for automatic start

Motion eMPS - No

Motion MB - No

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Motion MB - -

Motion eMPS

Motion MPS

Type

Motion eMPS - Robot

Motion MPS - Robot

Model

Motion eMPS - Motion

Motion MPS - Motion

Carriage

Motion eMPS - eMPS

Motion MPS - MPS

Standard Plate (mm)

Motion eMPS - n.a.

Motion MPS - n.a.

Optional Plate (mm)

Motion eMPS - n.a.

Motion MPS - n.a.

Standard max weight (kg)

Motion eMPS - n.a.

Motion MPS - n.a.

Optional Max weight (kg)

Motion eMPS - n.a.

Motion MPS - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Motion MPS - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Motion MPS - 2.200

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Motion MPS - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Motion MPS - 15 ÷ 150

Programs (P.)

Motion eMPS - 99

Motion MPS - 99

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Motion MPS - 16 ÷ 80 m/min

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Motion MPS - 2,0 ÷ 5,0

Tension regulations

Motion eMPS - 5 different position from panel

Motion MPS - 5 different position from panel

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Motion MPS - Fixed std. 150,200,250% - opt. 300%

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Motion MPS - 230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

Motion eMPS - 16

Motion MPS - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Motion MPS - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Motion MPS - Lateral

Quantity of pallets per load

Motion eMPS - 160

Motion MPS - 160

Air blow system for automatic start

Motion eMPS - No

Motion MPS - No

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Motion MPS - -

Motion eMPS

Motion MPS2

Type

Motion eMPS - Robot

Motion MPS2 - Robot

Model

Motion eMPS - Motion

Motion MPS2 - Motion

Carriage

Motion eMPS - eMPS

Motion MPS2 - MPS2

Standard Plate (mm)

Motion eMPS - n.a.

Motion MPS2 - n.a.

Optional Plate (mm)

Motion eMPS - n.a.

Motion MPS2 - n.a.

Standard max weight (kg)

Motion eMPS - n.a.

Motion MPS2 - n.a.

Optional Max weight (kg)

Motion eMPS - n.a.

Motion MPS2 - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Motion MPS2 - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Motion MPS2 - 2.200

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Motion MPS2 - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Motion MPS2 - 15 ÷ 150

Programs (P.)

Motion eMPS - 99

Motion MPS2 - 99

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Motion MPS2 - 16 ÷ 80 m/min

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Motion MPS2 - 2,0 ÷ 5,0

Tension regulations

Motion eMPS - 5 different position from panel

Motion MPS2 - 5 different position from panel

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Motion MPS2 - Variable in 5 positions, 120% to 400%

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Motion MPS2 - 230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

Motion eMPS - 16

Motion MPS2 - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Motion MPS2 - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Motion MPS2 - Lateral

Quantity of pallets per load

Motion eMPS - 160

Motion MPS2 - 140

Air blow system for automatic start

Motion eMPS - No

Motion MPS2 - No

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Motion MPS2 - -

Motion eMPS

Motion 2.0 MPS

Type

Motion eMPS - Robot

Motion 2.0 MPS - Robot

Model

Motion eMPS - Motion

Motion 2.0 MPS - Motion 2.0

Carriage

Motion eMPS - eMPS

Motion 2.0 MPS - MPS

Standard Plate (mm)

Motion eMPS - n.a.

Motion 2.0 MPS - n.a.

Optional Plate (mm)

Motion eMPS - n.a.

Motion 2.0 MPS - n.a.

Standard max weight (kg)

Motion eMPS - n.a.

Motion 2.0 MPS - n.a.

Optional Max weight (kg)

Motion eMPS - n.a.

Motion 2.0 MPS - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Motion 2.0 MPS - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Motion 2.0 MPS - 2.200

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Motion 2.0 MPS - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Motion 2.0 MPS - 15 ÷ 150

Programs (P.)

Motion eMPS - 99

Motion 2.0 MPS - 99

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Motion 2.0 MPS - 16 ÷ 80 m/min

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Motion 2.0 MPS - 2,0 ÷ 5,0

Tension regulations

Motion eMPS - 5 different position from panel

Motion 2.0 MPS - 5 different position from panel

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Motion 2.0 MPS - Fixed std. 150,200,250% - opt. 300%

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Motion 2.0 MPS - 230V – 2,3 A – 1,15 kW - 24VDC

Max coil weight (kg)

Motion eMPS - 16

Motion 2.0 MPS - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Motion 2.0 MPS - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Motion 2.0 MPS - Lateral

Quantity of pallets per load

Motion eMPS - 160

Motion 2.0 MPS - 160

Air blow system for automatic start

Motion eMPS - No

Motion 2.0 MPS - Optional

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Motion 2.0 MPS - -

Motion eMPS

Motion 2.0 EB

Type

Motion eMPS - Robot

Motion 2.0 EB - Robot

Model

Motion eMPS - Motion

Motion 2.0 EB - Motion 2.0

Carriage

Motion eMPS - eMPS

Motion 2.0 EB - EB

Standard Plate (mm)

Motion eMPS - n.a.

Motion 2.0 EB - n.a.

Optional Plate (mm)

Motion eMPS - n.a.

Motion 2.0 EB - n.a.

Standard max weight (kg)

Motion eMPS - n.a.

Motion 2.0 EB - n.a.

Optional Max weight (kg)

Motion eMPS - n.a.

Motion 2.0 EB - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Motion 2.0 EB - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Motion 2.0 EB - 2.200

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Motion 2.0 EB - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Motion 2.0 EB - 5 ÷ 40

Programs (P.)

Motion eMPS - 99

Motion 2.0 EB - 99

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Motion 2.0 EB - 16 ÷ 80 m/min

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Motion 2.0 EB - 2,0 ÷ 5,0

Tension regulations

Motion eMPS - 5 different position from panel

Motion 2.0 EB - 5 different position from panel

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Motion 2.0 EB - n.a.

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Motion 2.0 EB - 230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

Motion eMPS - 16

Motion 2.0 EB - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Motion 2.0 EB - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Motion 2.0 EB - Lateral

Quantity of pallets per load

Motion eMPS - 160

Motion 2.0 EB - 170

Air blow system for automatic start

Motion eMPS - No

Motion 2.0 EB - No

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Motion 2.0 EB - -

Motion eMPS

Motion 2.0 MB

Type

Motion eMPS - Robot

Motion 2.0 MB - Robot

Model

Motion eMPS - Motion

Motion 2.0 MB - Motion 2.0

Carriage

Motion eMPS - eMPS

Motion 2.0 MB - MB

Standard Plate (mm)

Motion eMPS - n.a.

Motion 2.0 MB - n.a.

Optional Plate (mm)

Motion eMPS - n.a.

Motion 2.0 MB - n.a.

Standard max weight (kg)

Motion eMPS - n.a.

Motion 2.0 MB - n.a.

Optional Max weight (kg)

Motion eMPS - n.a.

Motion 2.0 MB - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Motion 2.0 MB - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Motion 2.0 MB - 2.200

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Motion 2.0 MB - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Motion 2.0 MB - 5 ÷ 40

Programs (P.)

Motion eMPS - 99

Motion 2.0 MB - 99

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Motion 2.0 MB - 16 ÷ 80 m/min

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Motion 2.0 MB - 2,0 ÷ 5,0

Tension regulations

Motion eMPS - 5 different position from panel

Motion 2.0 MB - Manually from the carriage

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Motion 2.0 MB - n.a.

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Motion 2.0 MB - 230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

Motion eMPS - 16

Motion 2.0 MB - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Motion 2.0 MB - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Motion 2.0 MB - Lateral

Quantity of pallets per load

Motion eMPS - 160

Motion 2.0 MB - 180

Air blow system for automatic start

Motion eMPS - No

Motion 2.0 MB - No

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Motion 2.0 MB - -

Motion eMPS

Motion 2.0 MPS2

Type

Motion eMPS - Robot

Motion 2.0 MPS2 - Robot

Model

Motion eMPS - Motion

Motion 2.0 MPS2 - Motion 2.0

Carriage

Motion eMPS - eMPS

Motion 2.0 MPS2 - MPS2

Standard Plate (mm)

Motion eMPS - n.a.

Motion 2.0 MPS2 - n.a.

Optional Plate (mm)

Motion eMPS - n.a.

Motion 2.0 MPS2 - n.a.

Standard max weight (kg)

Motion eMPS - n.a.

Motion 2.0 MPS2 - n.a.

Optional Max weight (kg)

Motion eMPS - n.a.

Motion 2.0 MPS2 - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Motion 2.0 MPS2 - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Motion 2.0 MPS2 - 2.200

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Motion 2.0 MPS2 - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Motion 2.0 MPS2 - 15 ÷ 150

Programs (P.)

Motion eMPS - 99

Motion 2.0 MPS2 - 99

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Motion 2.0 MPS2 - 16 ÷ 80 m/min

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Motion 2.0 MPS2 - 2,0 ÷ 5,0

Tension regulations

Motion eMPS - 5 different position from panel

Motion 2.0 MPS2 - 5 different position from panel

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Motion 2.0 MPS2 - Variable in 5 positions, 120% to 400%

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Motion 2.0 MPS2 - 230V – 2,3 A – 1,15 kW - 24VDC

Max coil weight (kg)

Motion eMPS - 16

Motion 2.0 MPS2 - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Motion 2.0 MPS2 - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Motion 2.0 MPS2 - Lateral

Quantity of pallets per load

Motion eMPS - 160

Motion 2.0 MPS2 - 140

Air blow system for automatic start

Motion eMPS - No

Motion 2.0 MPS2 - Optional

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Motion 2.0 MPS2 - -

Motion eMPS

Nimbly EB

Type

Motion eMPS - Robot

Nimbly EB - Arm Wrapper

Model

Motion eMPS - Motion

Nimbly EB - Nimbly

Carriage

Motion eMPS - eMPS

Nimbly EB - EB

Standard Plate (mm)

Motion eMPS - n.a.

Nimbly EB - 1710

Optional Plate (mm)

Motion eMPS - n.a.

Nimbly EB - n.a.

Standard max weight (kg)

Motion eMPS - n.a.

Nimbly EB - n.a.

Optional Max weight (kg)

Motion eMPS - n.a.

Nimbly EB - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Nimbly EB - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Nimbly EB - 2.300

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Nimbly EB - n.a.

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Nimbly EB - 5 ÷ 40

Programs (P.)

Motion eMPS - 99

Nimbly EB - 6

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Nimbly EB - 4 ÷ 11

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Nimbly EB - 2,0 ÷ 5,0

Tension regulations

Motion eMPS - 5 different position from panel

Nimbly EB - 2 different position from panel

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Nimbly EB - n.a.

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Nimbly EB - 230V - 50Hz - 8A - 0,5 kW

Max coil weight (kg)

Motion eMPS - 16

Nimbly EB - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Nimbly EB - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Nimbly EB - No

Quantity of pallets per load

Motion eMPS - 160

Nimbly EB - n.a.

Air blow system for automatic start

Motion eMPS - No

Nimbly EB - No

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Nimbly EB - -

Motion eMPS

Nimbly MB

Type

Motion eMPS - Robot

Nimbly MB - Arm Wrapper

Model

Motion eMPS - Motion

Nimbly MB - Nimbly

Carriage

Motion eMPS - eMPS

Nimbly MB - MB

Standard Plate (mm)

Motion eMPS - n.a.

Nimbly MB - 1710

Optional Plate (mm)

Motion eMPS - n.a.

Nimbly MB - n.a.

Standard max weight (kg)

Motion eMPS - n.a.

Nimbly MB - n.a.

Optional Max weight (kg)

Motion eMPS - n.a.

Nimbly MB - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Nimbly MB - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Nimbly MB - 2.300

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Nimbly MB - n.a.

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Nimbly MB - 5 ÷ 40

Programs (P.)

Motion eMPS - 99

Nimbly MB - 6

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Nimbly MB - 4 ÷ 11

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Nimbly MB - 2,0 ÷ 5,0

Tension regulations

Motion eMPS - 5 different position from panel

Nimbly MB - Manually from the carriage

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Nimbly MB - n.a.

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Nimbly MB - 230V - 50Hz - 8A - 0,5 kW

Max coil weight (kg)

Motion eMPS - 16

Nimbly MB - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Nimbly MB - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Nimbly MB - No

Quantity of pallets per load

Motion eMPS - 160

Nimbly MB - n.a.

Air blow system for automatic start

Motion eMPS - No

Nimbly MB - No

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Nimbly MB - -

Motion eMPS

Wingwrap MPS

Type

Motion eMPS - Robot

Wingwrap MPS - Arm Wrapper

Model

Motion eMPS - Motion

Wingwrap MPS - Wingwrap

Carriage

Motion eMPS - eMPS

Wingwrap MPS - MPS

Standard Plate (mm)

Motion eMPS - n.a.

Wingwrap MPS - 1710

Optional Plate (mm)

Motion eMPS - n.a.

Wingwrap MPS - 1980 - 2120 - 2260 - 2400

Standard max weight (kg)

Motion eMPS - n.a.

Wingwrap MPS - n.a.

Optional Max weight (kg)

Motion eMPS - n.a.

Wingwrap MPS - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Wingwrap MPS - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Wingwrap MPS - 2.300

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Wingwrap MPS - 2500, 3000

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Wingwrap MPS - 15 ÷ 240

Programs (P.)

Motion eMPS - 99

Wingwrap MPS - 99

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Wingwrap MPS - 4 ÷ 12

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Wingwrap MPS - 2,0 ÷ 5,0

Tension regulations

Motion eMPS - 5 different position from panel

Wingwrap MPS - 5 different position from panel

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Wingwrap MPS - Fixed std. 150,200,250% - opt. 300%

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Wingwrap MPS - 230V - 50Hz - 10A - 1,12 kW

Max coil weight (kg)

Motion eMPS - 16

Wingwrap MPS - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Wingwrap MPS - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Wingwrap MPS - Front + Back

Quantity of pallets per load

Motion eMPS - 160

Wingwrap MPS - n.a.

Air blow system for automatic start

Motion eMPS - No

Wingwrap MPS - Optional

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Wingwrap MPS - -

Motion eMPS

Wingwrap MPS2

Type

Motion eMPS - Robot

Wingwrap MPS2 - Arm Wrapper

Model

Motion eMPS - Motion

Wingwrap MPS2 - Wingwrap

Carriage

Motion eMPS - eMPS

Wingwrap MPS2 - MPS2

Standard Plate (mm)

Motion eMPS - n.a.

Wingwrap MPS2 - 1710

Optional Plate (mm)

Motion eMPS - n.a.

Wingwrap MPS2 - 1980 - 2120 - 2260 - 2400

Standard max weight (kg)

Motion eMPS - n.a.

Wingwrap MPS2 - n.a.

Optional Max weight (kg)

Motion eMPS - n.a.

Wingwrap MPS2 - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Wingwrap MPS2 - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Wingwrap MPS2 - 2.300

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Wingwrap MPS2 - 2500, 3000

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Wingwrap MPS2 - 15 ÷ 240

Programs (P.)

Motion eMPS - 99

Wingwrap MPS2 - 99

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Wingwrap MPS2 - 4 ÷ 12

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Wingwrap MPS2 - 2,0 ÷ 5,0

Tension regulations

Motion eMPS - 5 different position from panel

Wingwrap MPS2 - 5 different position from panel

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Wingwrap MPS2 - Variable in 5 positions, 120% to 400%

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Wingwrap MPS2 - 230V - 50Hz - 10A - 1,12 kW

Max coil weight (kg)

Motion eMPS - 16

Wingwrap MPS2 - 16

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Wingwrap MPS2 - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Wingwrap MPS2 - Front + Back

Quantity of pallets per load

Motion eMPS - 160

Wingwrap MPS2 - n.a.

Air blow system for automatic start

Motion eMPS - No

Wingwrap MPS2 - Optional

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Wingwrap MPS2 - -

Motion eMPS

Ironman

Type

Motion eMPS - Robot

Ironman - Manual

Model

Motion eMPS - Motion

Ironman - Ironman

Carriage

Motion eMPS - eMPS

Ironman - MB

Standard Plate (mm)

Motion eMPS - n.a.

Ironman - n.a.

Optional Plate (mm)

Motion eMPS - n.a.

Ironman - n.a.

Standard max weight (kg)

Motion eMPS - n.a.

Ironman - n.a.

Optional Max weight (kg)

Motion eMPS - n.a.

Ironman - n.a.

Height detention (mm)

Motion eMPS - Automatic by photocell

Ironman - Manual

Standard Wrapping height (mm)

Motion eMPS - 2.200

Ironman - 2100

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Ironman - n.a.

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Ironman - 1 ÷ 15

Programs (P.)

Motion eMPS - 99

Ironman - n.a.

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Ironman - 75 m/min

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Ironman - n.a.

Tension regulations

Motion eMPS - 5 different position from panel

Ironman - Manually from the carriage

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Ironman - n.a.

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Ironman - n.a.

Max coil weight (kg)

Motion eMPS - 16

Ironman - 12

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Ironman - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Ironman - No

Quantity of pallets per load

Motion eMPS - 160

Ironman - n.a.

Air blow system for automatic start

Motion eMPS - No

Ironman - No

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Ironman - -

Motion eMPS

Discovery A

Type

Motion eMPS - Robot

Discovery A - Automatic Turntable

Model

Motion eMPS - Motion

Discovery A - Discovery-A

Carriage

Motion eMPS - eMPS

Discovery A - MPS

Standard Plate (mm)

Motion eMPS - n.a.

Discovery A - 2000

Optional Plate (mm)

Motion eMPS - n.a.

Discovery A - 1850 - 2150 - 2500

Standard max weight (kg)

Motion eMPS - n.a.

Discovery A - 2000

Optional Max weight (kg)

Motion eMPS - n.a.

Discovery A - 3000 - 4000

Height detention (mm)

Motion eMPS - Automatic by photocell

Discovery A - Automatic by photocell

Standard Wrapping height (mm)

Motion eMPS - 2.200

Discovery A - 2.400

Optional Wrapping height (mm)

Motion eMPS - 2400, 2700, 3000, 3500

Discovery A - On request

Recommended for pallet quantity (pallet/shift)

Motion eMPS - 10 ÷ 150

Discovery A - 40 - 280

Programs (P.)

Motion eMPS - 99

Discovery A - 31

Rotation speed (rpm - m/min)

Motion eMPS - 16 ÷ 80 m/min

Discovery A - 4 ÷ 15

Carriage speed (m/min)

Motion eMPS - 2,0 ÷ 5,0

Discovery A - 2,0 ÷ 7,0

Tension regulations

Motion eMPS - 5 different position from panel

Discovery A - 5 different position from panel

Pre-strech regulations

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Discovery A - Fixed std. 150,200,250% - opt. 300%

Power

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Discovery A - 400V - 50-60Hz + T + N

Max coil weight (kg)

Motion eMPS - 16

Discovery A - n.a.

Max coil dimension (mm)

Motion eMPS - D. 260 - H.500

Discovery A - D. 260 - H.500

Fork entrance for machine transport

Motion eMPS - Lateral

Discovery A - Front + Back

Quantity of pallets per load

Motion eMPS - 160

Discovery A - n.a.

Air blow system for automatic start

Motion eMPS - No

Discovery A - No

Tipologia di batteria

Motion eMPS - AGM 2 x 12V - 100Ah

Discovery A - -
Carriage
“Motion” is available with the following types of trolleys:
- MB: Mechanical brake
- EB:Electromagnetic clutch
- eMPS: Motorized pre-stretch with interchangeable fixed pre-stretch ratio
- MPS: Motorized pre-stretch with interchangeable fixed pre-stretch ratio and quick film loading
- MPS2: Motorized pre-stretch with variable pre-stretch ratio with two motors and rapid film loading

Why "Motion"?

Easily movable machine: you can wrap it wherever you want.
Faster than traditional turntable wrappers due to less time wasted between pallets.
A self-propelled machine for wrapping pallets of any size, weight and shape.
It can store up to 99 wrapping cycles.
Available with different winding heights and trolleys

Contact us

For any information on our machines, their functions and technical characteristics, to ask for a quote or just because you’re feeling bored, don’t hesitate to contact us using the form below or by phone.
