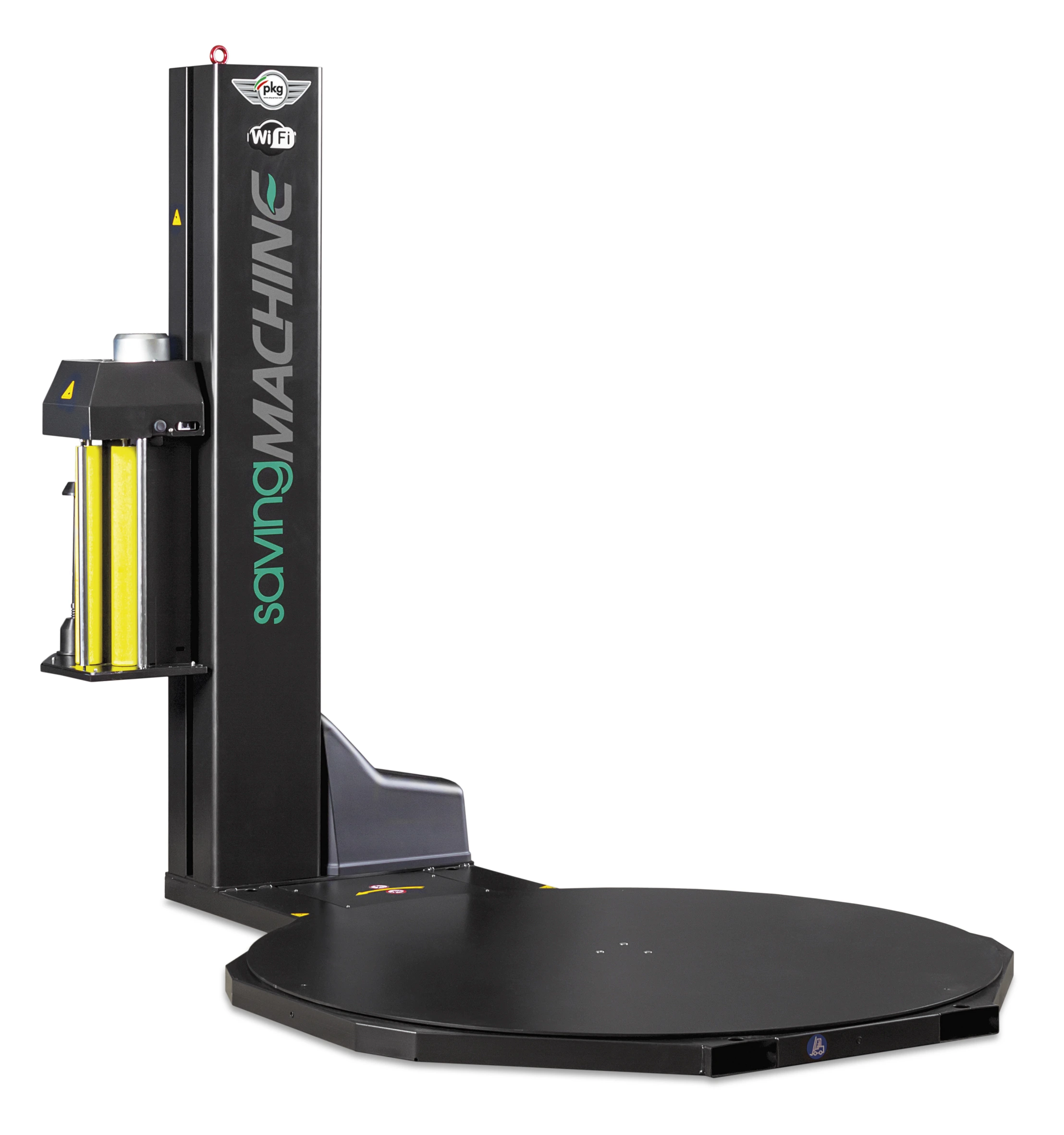

Saving Machine EB

Te gusta la palabra “Saving” (ahorro), ¿verdad?

Entonces Saving Machine es tu máquina.
Barata, sencilla y robusta (como todas las máquinas PKG), es la máquina de embalaje ideal para quien desea ahorrar sin renunciar a la calidad y al máximo resultado.

Tabla

	Saving Machine					Transpallet		Slim
ø	1500	1650	1800	2200	2400	1650	1800	1650
L	1200	1200	1350	1550	1700	1200	1350	1200
W	800	1000	1200	1550	1700	1000	1200	1000
H	2450	2450	2450	2450	2450	2450	2450	2450
H (option)	2200	2200	2200	2200	2200	2200	2200	2200
H (option)	2700	2700	2700	2700	2700	2700	2700	2700
H (option)	3200	3200	3200	3200	3200	3200	3200	3200
H (option)	3500	3500	3500	3500	3500	3500	3500	3500
H (option)	3900	3900	3900	3900	3900	3900	3900	3900
Kg	2000	2000	2000	2000	2000	1200	1200	1200

Caracterìsticas técnicas

Type

Turntable

Model

Saving

Carriage

EB

Standard Plate (mm)

1500

Optional Plate (mm)

1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Standard max weight (kg)

2000

Optional Max weight (kg)

3000. 1200 per TP / SLIM

Height detention (mm)

Automatic by photocell

Standard Wrapping height (mm)

2.450

Optional Wrapping height (mm)

3200 - 2200, 2700, 3500, 3900

Recommended for pallet quantity (pallet/shift)

5 ÷ 40

Programs (P.)

6

Rotation speed (rpm - m/min)

4 ÷ 12

Carriage speed (m/min)

1,3 ÷ 4,0

Tension regulations

5 different position from panel

Pre-strech regulations

n.a.

Power

230V - 50Hz - 10A - 0,8 kW

Max coil weight (kg)

16

Max coil dimension (mm)

D. 260 - H.500

Fork entrance for machine transport

Front + Back

Type of battery

n.a.

Quantity of pallets per load

n.a.

Air blow system for automatic start

No

Varianti di Saving Machine

Saving Machine EB

Saving Machine MB

Saving Machine eMPS

Comparación

Scegli il prodotto da comparare con Saving Machine EB

Saving Machine EB

Saving Machine MB

Type

Saving Machine EB - Turntable

Saving Machine MB - Turntable

Model

Saving Machine EB - Saving

Saving Machine MB - Saving

Carriage

Saving Machine EB - EB

Saving Machine MB - MB

Standard Plate (mm)

Saving Machine EB - 1500

Saving Machine MB - 1500

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Saving Machine MB - 1652 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Standard max weight (kg)

Saving Machine EB - 2000

Saving Machine MB - 2000

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Saving Machine MB - 3000. 1200 per TP / SLIM

Height detention (mm)

Saving Machine EB - Automatic by photocell

Saving Machine MB - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Saving Machine MB - 2.450

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Saving Machine MB - 3200 - 2200, 2700, 3500, 3900

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Saving Machine MB - 5 ÷ 40

Programs (P.)

Saving Machine EB - 6

Saving Machine MB - 6

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Saving Machine MB - 4 ÷ 12

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Saving Machine MB - 1,3 ÷ 4,0

Tension regulations

Saving Machine EB - 5 different position from panel

Saving Machine MB - Manually from the carriage

Pre-strech regulations

Saving Machine EB - n.a.

Saving Machine MB - n.a.

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Saving Machine MB - 230V - 50Hz - 10A - 0,8 kW

Max coil weight (kg)

Saving Machine EB - 16

Saving Machine MB - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Saving Machine MB - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Saving Machine MB - Front + Back

Type of battery

Saving Machine EB - n.a.

Saving Machine MB - n.a.

Quantity of pallets per load

Saving Machine EB - n.a.

Saving Machine MB - n.a.

Air blow system for automatic start

Saving Machine EB - No

Saving Machine MB - No

Saving Machine EB

Saving Machine eMPS

Type

Saving Machine EB - Turntable

Saving Machine eMPS - Turntable

Model

Saving Machine EB - Saving

Saving Machine eMPS - Saving

Carriage

Saving Machine EB - EB

Saving Machine eMPS - eMPS

Standard Plate (mm)

Saving Machine EB - 1500

Saving Machine eMPS - 1500

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Saving Machine eMPS - 1654 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Standard max weight (kg)

Saving Machine EB - 2000

Saving Machine eMPS - 2000

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Saving Machine eMPS - 3000. 1200 per TP / SLIM

Height detention (mm)

Saving Machine EB - Automatic by photocell

Saving Machine eMPS - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Saving Machine eMPS - 2.450

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Saving Machine eMPS - 3200 - 2200, 2700, 3500, 3900

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Saving Machine eMPS - 10 ÷ 200

Programs (P.)

Saving Machine EB - 6

Saving Machine eMPS - 6

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Saving Machine eMPS - 4 ÷ 12

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Saving Machine eMPS - 1,3 ÷ 4,0

Tension regulations

Saving Machine EB - 5 different position from panel

Saving Machine eMPS - 5 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Saving Machine eMPS - Fixed std. 200% - opt. 150,250,300%

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Saving Machine eMPS - 230V - 50Hz - 10A - 0,8 kW

Max coil weight (kg)

Saving Machine EB - 16

Saving Machine eMPS - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Saving Machine eMPS - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Saving Machine eMPS - Front + Back

Type of battery

Saving Machine EB - n.a.

Saving Machine eMPS - n.a.

Quantity of pallets per load

Saving Machine EB - n.a.

Saving Machine eMPS - n.a.

Air blow system for automatic start

Saving Machine EB - No

Saving Machine eMPS - No

Saving Machine EB

Simply

Type

Saving Machine EB - Turntable

Simply - Turntable

Model

Saving Machine EB - Saving

Simply - Simply

Carriage

Saving Machine EB - EB

Simply - MB

Standard Plate (mm)

Saving Machine EB - 1500

Simply - 1500

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Simply - 1650

Standard max weight (kg)

Saving Machine EB - 2000

Simply - 2000

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Simply - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Simply - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Simply - 2.200

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Simply - n.a.

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Simply - 5 ÷ 40

Programs (P.)

Saving Machine EB - 6

Simply - 1

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Simply - 4 ÷ 12

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Simply - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Simply - Manually from the carriage

Pre-strech regulations

Saving Machine EB - n.a.

Simply - n.a.

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Simply - 230V - 50-60Hz - 10A

Max coil weight (kg)

Saving Machine EB - 16

Simply - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Simply - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Simply - Front + Back

Type of battery

Saving Machine EB - n.a.

Simply - n.a.

Quantity of pallets per load

Saving Machine EB - n.a.

Simply - n.a.

Air blow system for automatic start

Saving Machine EB - No

Simply - No

Saving Machine EB

Discovery MPS

Type

Saving Machine EB - Turntable

Discovery MPS - Turntable

Model

Saving Machine EB - Saving

Discovery MPS - Discovery

Carriage

Saving Machine EB - EB

Discovery MPS - MPS

Standard Plate (mm)

Saving Machine EB - 1500

Discovery MPS - 1500

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Discovery MPS - 1650 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Standard max weight (kg)

Saving Machine EB - 2000

Discovery MPS - 2000

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Discovery MPS - 3000. 1200 per TP / SLIM

Height detention (mm)

Saving Machine EB - Automatic by photocell

Discovery MPS - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Discovery MPS - 2.450

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Discovery MPS - 3200 - 2200, 2700, 3500, 3900

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Discovery MPS - 15 ÷ 240

Programs (P.)

Saving Machine EB - 6

Discovery MPS - 99

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Discovery MPS - 4 ÷ 12

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Discovery MPS - 1,3 ÷ 4,0

Tension regulations

Saving Machine EB - 5 different position from panel

Discovery MPS - 5 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Discovery MPS - Fixed std. 150,200,250% - opt. 300%

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Discovery MPS - 230V - 50Hz - 10A - 1,05 kW

Max coil weight (kg)

Saving Machine EB - 16

Discovery MPS - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Discovery MPS - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Discovery MPS - Front + Back

Type of battery

Saving Machine EB - n.a.

Discovery MPS - n.a.

Quantity of pallets per load

Saving Machine EB - n.a.

Discovery MPS - n.a.

Air blow system for automatic start

Saving Machine EB - No

Discovery MPS - Optional

Saving Machine EB

Discovery MPS2

Type

Saving Machine EB - Turntable

Discovery MPS2 - Turntable

Model

Saving Machine EB - Saving

Discovery MPS2 - Discovery

Carriage

Saving Machine EB - EB

Discovery MPS2 - MPS2

Standard Plate (mm)

Saving Machine EB - 1500

Discovery MPS2 - 1500

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Discovery MPS2 - 1651 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Standard max weight (kg)

Saving Machine EB - 2000

Discovery MPS2 - 2000

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Discovery MPS2 - 3000. 1200 per TP / SLIM

Height detention (mm)

Saving Machine EB - Automatic by photocell

Discovery MPS2 - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Discovery MPS2 - 2.450

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Discovery MPS2 - 3200 - 2200, 2700, 3500, 3900

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Discovery MPS2 - 15 ÷ 240

Programs (P.)

Saving Machine EB - 6

Discovery MPS2 - 99

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Discovery MPS2 - 4 ÷ 12

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Discovery MPS2 - 1,3 ÷ 4,0

Tension regulations

Saving Machine EB - 5 different position from panel

Discovery MPS2 - 5 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Discovery MPS2 - Variable in 5 positions, 120% to 400%

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Discovery MPS2 - 230V - 50Hz - 10A - 1,3 kW

Max coil weight (kg)

Saving Machine EB - 16

Discovery MPS2 - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Discovery MPS2 - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Discovery MPS2 - Front + Back

Type of battery

Saving Machine EB - n.a.

Discovery MPS2 - n.a.

Quantity of pallets per load

Saving Machine EB - n.a.

Discovery MPS2 - n.a.

Air blow system for automatic start

Saving Machine EB - No

Discovery MPS2 - Optional

Saving Machine EB

Smartwrap

Type

Saving Machine EB - Turntable

Smartwrap - n.a.

Model

Saving Machine EB - Saving

Smartwrap - n.a.

Carriage

Saving Machine EB - EB

Smartwrap - n.a.

Standard Plate (mm)

Saving Machine EB - 1500

Smartwrap - n.a.

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Smartwrap - n.a.

Standard max weight (kg)

Saving Machine EB - 2000

Smartwrap - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Smartwrap - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Smartwrap - n.a.

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Smartwrap - n.a.

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Smartwrap - n.a.

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Smartwrap - n.a.

Programs (P.)

Saving Machine EB - 6

Smartwrap - n.a.

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Smartwrap - n.a.

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Smartwrap - n.a.

Tension regulations

Saving Machine EB - 5 different position from panel

Smartwrap - n.a.

Pre-strech regulations

Saving Machine EB - n.a.

Smartwrap - n.a.

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Smartwrap - n.a.

Max coil weight (kg)

Saving Machine EB - 16

Smartwrap - n.a.

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Smartwrap - n.a.

Fork entrance for machine transport

Saving Machine EB - Front + Back

Smartwrap - n.a.

Type of battery

Saving Machine EB - n.a.

Smartwrap - n.a.

Quantity of pallets per load

Saving Machine EB - n.a.

Smartwrap - n.a.

Air blow system for automatic start

Saving Machine EB - No

Smartwrap - n.a.

Saving Machine EB

Motion EB

Type

Saving Machine EB - Turntable

Motion EB - Robot

Model

Saving Machine EB - Saving

Motion EB - Motion

Carriage

Saving Machine EB - EB

Motion EB - EB

Standard Plate (mm)

Saving Machine EB - 1500

Motion EB - n.a.

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Motion EB - n.a.

Standard max weight (kg)

Saving Machine EB - 2000

Motion EB - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Motion EB - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Motion EB - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Motion EB - 2.200

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Motion EB - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Motion EB - 5 ÷ 40

Programs (P.)

Saving Machine EB - 6

Motion EB - 99

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Motion EB - 16 ÷ 80 m/min

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Motion EB - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Motion EB - 5 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Motion EB - n.a.

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Motion EB - 230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

Saving Machine EB - 16

Motion EB - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Motion EB - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Motion EB - Lateral

Type of battery

Saving Machine EB - n.a.

Motion EB - AGM 2 x 12V - 100Ah

Quantity of pallets per load

Saving Machine EB - n.a.

Motion EB - 170

Air blow system for automatic start

Saving Machine EB - No

Motion EB - No

Saving Machine EB

Motion MB

Type

Saving Machine EB - Turntable

Motion MB - Robot

Model

Saving Machine EB - Saving

Motion MB - Motion

Carriage

Saving Machine EB - EB

Motion MB - MB

Standard Plate (mm)

Saving Machine EB - 1500

Motion MB - n.a.

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Motion MB - n.a.

Standard max weight (kg)

Saving Machine EB - 2000

Motion MB - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Motion MB - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Motion MB - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Motion MB - 2.200

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Motion MB - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Motion MB - 5 ÷ 40

Programs (P.)

Saving Machine EB - 6

Motion MB - 99

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Motion MB - 16 ÷ 80 m/min

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Motion MB - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Motion MB - Manually from the carriage

Pre-strech regulations

Saving Machine EB - n.a.

Motion MB - n.a.

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Motion MB - 230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

Saving Machine EB - 16

Motion MB - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Motion MB - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Motion MB - Lateral

Type of battery

Saving Machine EB - n.a.

Motion MB - n.a.

Quantity of pallets per load

Saving Machine EB - n.a.

Motion MB - 180

Air blow system for automatic start

Saving Machine EB - No

Motion MB - No

Saving Machine EB

Motion MPS

Type

Saving Machine EB - Turntable

Motion MPS - Robot

Model

Saving Machine EB - Saving

Motion MPS - Motion

Carriage

Saving Machine EB - EB

Motion MPS - MPS

Standard Plate (mm)

Saving Machine EB - 1500

Motion MPS - n.a.

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Motion MPS - n.a.

Standard max weight (kg)

Saving Machine EB - 2000

Motion MPS - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Motion MPS - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Motion MPS - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Motion MPS - 2.200

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Motion MPS - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Motion MPS - 15 ÷ 150

Programs (P.)

Saving Machine EB - 6

Motion MPS - 99

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Motion MPS - 16 ÷ 80 m/min

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Motion MPS - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Motion MPS - 5 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Motion MPS - Fixed std. 150,200,250% - opt. 300%

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Motion MPS - 230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

Saving Machine EB - 16

Motion MPS - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Motion MPS - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Motion MPS - Lateral

Type of battery

Saving Machine EB - n.a.

Motion MPS - AGM 2 x 12V - 100Ah

Quantity of pallets per load

Saving Machine EB - n.a.

Motion MPS - 160

Air blow system for automatic start

Saving Machine EB - No

Motion MPS - No

Saving Machine EB

Motion MPS2

Type

Saving Machine EB - Turntable

Motion MPS2 - Robot

Model

Saving Machine EB - Saving

Motion MPS2 - Motion

Carriage

Saving Machine EB - EB

Motion MPS2 - MPS2

Standard Plate (mm)

Saving Machine EB - 1500

Motion MPS2 - n.a.

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Motion MPS2 - n.a.

Standard max weight (kg)

Saving Machine EB - 2000

Motion MPS2 - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Motion MPS2 - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Motion MPS2 - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Motion MPS2 - 2.200

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Motion MPS2 - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Motion MPS2 - 15 ÷ 150

Programs (P.)

Saving Machine EB - 6

Motion MPS2 - 99

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Motion MPS2 - 16 ÷ 80 m/min

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Motion MPS2 - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Motion MPS2 - 5 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Motion MPS2 - Variable in 5 positions, 120% to 400%

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Motion MPS2 - 230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

Saving Machine EB - 16

Motion MPS2 - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Motion MPS2 - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Motion MPS2 - Lateral

Type of battery

Saving Machine EB - n.a.

Motion MPS2 - AGM 2 x 12V - 100Ah

Quantity of pallets per load

Saving Machine EB - n.a.

Motion MPS2 - 140

Air blow system for automatic start

Saving Machine EB - No

Motion MPS2 - No

Saving Machine EB

Motion eMPS

Type

Saving Machine EB - Turntable

Motion eMPS - Robot

Model

Saving Machine EB - Saving

Motion eMPS - Motion

Carriage

Saving Machine EB - EB

Motion eMPS - eMPS

Standard Plate (mm)

Saving Machine EB - 1500

Motion eMPS - n.a.

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Motion eMPS - n.a.

Standard max weight (kg)

Saving Machine EB - 2000

Motion eMPS - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Motion eMPS - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Motion eMPS - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Motion eMPS - 2.200

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Motion eMPS - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Motion eMPS - 10 ÷ 150

Programs (P.)

Saving Machine EB - 6

Motion eMPS - 99

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Motion eMPS - 16 ÷ 80 m/min

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Motion eMPS - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Motion eMPS - 5 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

Saving Machine EB - 16

Motion eMPS - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Motion eMPS - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Motion eMPS - Lateral

Quantity of pallets per load

Saving Machine EB - n.a.

Motion eMPS - 160

Air blow system for automatic start

Saving Machine EB - No

Motion eMPS - No

Type of battery

Saving Machine EB - n.a.

Motion eMPS - -

Saving Machine EB

Motion eMPS

Type

Saving Machine EB - Turntable

Motion eMPS - Robot

Model

Saving Machine EB - Saving

Motion eMPS - Motion

Carriage

Saving Machine EB - EB

Motion eMPS - eMPS

Standard Plate (mm)

Saving Machine EB - 1500

Motion eMPS - n.a.

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Motion eMPS - n.a.

Standard max weight (kg)

Saving Machine EB - 2000

Motion eMPS - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Motion eMPS - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Motion eMPS - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Motion eMPS - 2.200

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Motion eMPS - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Motion eMPS - 10 ÷ 150

Programs (P.)

Saving Machine EB - 6

Motion eMPS - 99

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Motion eMPS - 16 ÷ 80 m/min

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Motion eMPS - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Motion eMPS - 5 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Motion eMPS - Fixed std. 200% - opt. 150,250,300%

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Motion eMPS - 230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

Saving Machine EB - 16

Motion eMPS - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Motion eMPS - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Motion eMPS - Lateral

Quantity of pallets per load

Saving Machine EB - n.a.

Motion eMPS - 160

Air blow system for automatic start

Saving Machine EB - No

Motion eMPS - No

Type of battery

Saving Machine EB - n.a.

Motion eMPS - -

Saving Machine EB

Motion 2.0 MPS

Type

Saving Machine EB - Turntable

Motion 2.0 MPS - Robot

Model

Saving Machine EB - Saving

Motion 2.0 MPS - Motion 2.0

Carriage

Saving Machine EB - EB

Motion 2.0 MPS - MPS

Standard Plate (mm)

Saving Machine EB - 1500

Motion 2.0 MPS - n.a.

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Motion 2.0 MPS - n.a.

Standard max weight (kg)

Saving Machine EB - 2000

Motion 2.0 MPS - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Motion 2.0 MPS - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Motion 2.0 MPS - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Motion 2.0 MPS - 2.200

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Motion 2.0 MPS - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Motion 2.0 MPS - 15 ÷ 150

Programs (P.)

Saving Machine EB - 6

Motion 2.0 MPS - 99

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Motion 2.0 MPS - 16 ÷ 80 m/min

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Motion 2.0 MPS - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Motion 2.0 MPS - 5 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Motion 2.0 MPS - Fixed std. 150,200,250% - opt. 300%

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Motion 2.0 MPS - 230V – 2,3 A – 1,15 kW - 24VDC

Max coil weight (kg)

Saving Machine EB - 16

Motion 2.0 MPS - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Motion 2.0 MPS - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Motion 2.0 MPS - Lateral

Type of battery

Saving Machine EB - n.a.

Motion 2.0 MPS - AGM 2 x 12V - 100Ah

Quantity of pallets per load

Saving Machine EB - n.a.

Motion 2.0 MPS - 160

Air blow system for automatic start

Saving Machine EB - No

Motion 2.0 MPS - Optional

Saving Machine EB

Motion 2.0 EB

Type

Saving Machine EB - Turntable

Motion 2.0 EB - Robot

Model

Saving Machine EB - Saving

Motion 2.0 EB - Motion 2.0

Carriage

Saving Machine EB - EB

Motion 2.0 EB - EB

Standard Plate (mm)

Saving Machine EB - 1500

Motion 2.0 EB - n.a.

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Motion 2.0 EB - n.a.

Standard max weight (kg)

Saving Machine EB - 2000

Motion 2.0 EB - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Motion 2.0 EB - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Motion 2.0 EB - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Motion 2.0 EB - 2.200

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Motion 2.0 EB - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Motion 2.0 EB - 5 ÷ 40

Programs (P.)

Saving Machine EB - 6

Motion 2.0 EB - 99

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Motion 2.0 EB - 16 ÷ 80 m/min

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Motion 2.0 EB - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Motion 2.0 EB - 5 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Motion 2.0 EB - n.a.

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Motion 2.0 EB - 230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

Saving Machine EB - 16

Motion 2.0 EB - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Motion 2.0 EB - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Motion 2.0 EB - Lateral

Type of battery

Saving Machine EB - n.a.

Motion 2.0 EB - AGM 2 x 12V - 100Ah

Quantity of pallets per load

Saving Machine EB - n.a.

Motion 2.0 EB - 170

Air blow system for automatic start

Saving Machine EB - No

Motion 2.0 EB - No

Saving Machine EB

Motion 2.0 MB

Type

Saving Machine EB - Turntable

Motion 2.0 MB - Robot

Model

Saving Machine EB - Saving

Motion 2.0 MB - Motion 2.0

Carriage

Saving Machine EB - EB

Motion 2.0 MB - MB

Standard Plate (mm)

Saving Machine EB - 1500

Motion 2.0 MB - n.a.

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Motion 2.0 MB - n.a.

Standard max weight (kg)

Saving Machine EB - 2000

Motion 2.0 MB - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Motion 2.0 MB - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Motion 2.0 MB - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Motion 2.0 MB - 2.200

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Motion 2.0 MB - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Motion 2.0 MB - 5 ÷ 40

Programs (P.)

Saving Machine EB - 6

Motion 2.0 MB - 99

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Motion 2.0 MB - 16 ÷ 80 m/min

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Motion 2.0 MB - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Motion 2.0 MB - Manually from the carriage

Pre-strech regulations

Saving Machine EB - n.a.

Motion 2.0 MB - n.a.

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Motion 2.0 MB - 230V – 2,3 A – 0,95kW - 24VDC

Max coil weight (kg)

Saving Machine EB - 16

Motion 2.0 MB - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Motion 2.0 MB - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Motion 2.0 MB - Lateral

Type of battery

Saving Machine EB - n.a.

Motion 2.0 MB - n.a.

Quantity of pallets per load

Saving Machine EB - n.a.

Motion 2.0 MB - 180

Air blow system for automatic start

Saving Machine EB - No

Motion 2.0 MB - No

Saving Machine EB

Motion 2.0 MPS2

Type

Saving Machine EB - Turntable

Motion 2.0 MPS2 - Robot

Model

Saving Machine EB - Saving

Motion 2.0 MPS2 - Motion 2.0

Carriage

Saving Machine EB - EB

Motion 2.0 MPS2 - MPS2

Standard Plate (mm)

Saving Machine EB - 1500

Motion 2.0 MPS2 - n.a.

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Motion 2.0 MPS2 - n.a.

Standard max weight (kg)

Saving Machine EB - 2000

Motion 2.0 MPS2 - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Motion 2.0 MPS2 - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Motion 2.0 MPS2 - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Motion 2.0 MPS2 - 2.200

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Motion 2.0 MPS2 - 2400, 2700, 3000, 3500

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Motion 2.0 MPS2 - 15 ÷ 150

Programs (P.)

Saving Machine EB - 6

Motion 2.0 MPS2 - 99

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Motion 2.0 MPS2 - 16 ÷ 80 m/min

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Motion 2.0 MPS2 - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Motion 2.0 MPS2 - 5 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Motion 2.0 MPS2 - Variable in 5 positions, 120% to 400%

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Motion 2.0 MPS2 - 230V – 2,3 A – 1,15 kW - 24VDC

Max coil weight (kg)

Saving Machine EB - 16

Motion 2.0 MPS2 - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Motion 2.0 MPS2 - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Motion 2.0 MPS2 - Lateral

Type of battery

Saving Machine EB - n.a.

Motion 2.0 MPS2 - AGM 2 x 12V - 100Ah

Quantity of pallets per load

Saving Machine EB - n.a.

Motion 2.0 MPS2 - 140

Air blow system for automatic start

Saving Machine EB - No

Motion 2.0 MPS2 - Optional

Saving Machine EB

Nimbly EB

Type

Saving Machine EB - Turntable

Nimbly EB - Arm Wrapper

Model

Saving Machine EB - Saving

Nimbly EB - Nimbly

Carriage

Saving Machine EB - EB

Nimbly EB - EB

Standard Plate (mm)

Saving Machine EB - 1500

Nimbly EB - 1710

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Nimbly EB - n.a.

Standard max weight (kg)

Saving Machine EB - 2000

Nimbly EB - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Nimbly EB - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Nimbly EB - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Nimbly EB - 2.300

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Nimbly EB - n.a.

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Nimbly EB - 5 ÷ 40

Programs (P.)

Saving Machine EB - 6

Nimbly EB - 6

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Nimbly EB - 4 ÷ 11

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Nimbly EB - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Nimbly EB - 2 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Nimbly EB - n.a.

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Nimbly EB - 230V - 50Hz - 8A - 0,5 kW

Max coil weight (kg)

Saving Machine EB - 16

Nimbly EB - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Nimbly EB - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Nimbly EB - No

Type of battery

Saving Machine EB - n.a.

Nimbly EB - n.a.

Quantity of pallets per load

Saving Machine EB - n.a.

Nimbly EB - n.a.

Air blow system for automatic start

Saving Machine EB - No

Nimbly EB - No

Saving Machine EB

Nimbly MB

Type

Saving Machine EB - Turntable

Nimbly MB - Arm Wrapper

Model

Saving Machine EB - Saving

Nimbly MB - Nimbly

Carriage

Saving Machine EB - EB

Nimbly MB - MB

Standard Plate (mm)

Saving Machine EB - 1500

Nimbly MB - 1710

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Nimbly MB - n.a.

Standard max weight (kg)

Saving Machine EB - 2000

Nimbly MB - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Nimbly MB - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Nimbly MB - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Nimbly MB - 2.300

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Nimbly MB - n.a.

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Nimbly MB - 5 ÷ 40

Programs (P.)

Saving Machine EB - 6

Nimbly MB - 6

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Nimbly MB - 4 ÷ 11

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Nimbly MB - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Nimbly MB - Manually from the carriage

Pre-strech regulations

Saving Machine EB - n.a.

Nimbly MB - n.a.

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Nimbly MB - 230V - 50Hz - 8A - 0,5 kW

Max coil weight (kg)

Saving Machine EB - 16

Nimbly MB - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Nimbly MB - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Nimbly MB - No

Type of battery

Saving Machine EB - n.a.

Nimbly MB - n.a.

Quantity of pallets per load

Saving Machine EB - n.a.

Nimbly MB - n.a.

Air blow system for automatic start

Saving Machine EB - No

Nimbly MB - No

Saving Machine EB

Wingwrap MPS

Type

Saving Machine EB - Turntable

Wingwrap MPS - Arm Wrapper

Model

Saving Machine EB - Saving

Wingwrap MPS - Wingwrap

Carriage

Saving Machine EB - EB

Wingwrap MPS - MPS

Standard Plate (mm)

Saving Machine EB - 1500

Wingwrap MPS - 1710

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Wingwrap MPS - 1980 - 2120 - 2260 - 2400

Standard max weight (kg)

Saving Machine EB - 2000

Wingwrap MPS - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Wingwrap MPS - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Wingwrap MPS - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Wingwrap MPS - 2.300

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Wingwrap MPS - 2500, 3000

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Wingwrap MPS - 15 ÷ 240

Programs (P.)

Saving Machine EB - 6

Wingwrap MPS - 99

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Wingwrap MPS - 4 ÷ 12

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Wingwrap MPS - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Wingwrap MPS - 5 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Wingwrap MPS - Fixed std. 150,200,250% - opt. 300%

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Wingwrap MPS - 230V - 50Hz - 10A - 1,12 kW

Max coil weight (kg)

Saving Machine EB - 16

Wingwrap MPS - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Wingwrap MPS - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Wingwrap MPS - Front + Back

Type of battery

Saving Machine EB - n.a.

Wingwrap MPS - n.a.

Quantity of pallets per load

Saving Machine EB - n.a.

Wingwrap MPS - n.a.

Air blow system for automatic start

Saving Machine EB - No

Wingwrap MPS - Optional

Saving Machine EB

Wingwrap MPS2

Type

Saving Machine EB - Turntable

Wingwrap MPS2 - Arm Wrapper

Model

Saving Machine EB - Saving

Wingwrap MPS2 - Wingwrap

Carriage

Saving Machine EB - EB

Wingwrap MPS2 - MPS2

Standard Plate (mm)

Saving Machine EB - 1500

Wingwrap MPS2 - 1710

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Wingwrap MPS2 - 1980 - 2120 - 2260 - 2400

Standard max weight (kg)

Saving Machine EB - 2000

Wingwrap MPS2 - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Wingwrap MPS2 - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Wingwrap MPS2 - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Wingwrap MPS2 - 2.300

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Wingwrap MPS2 - 2500, 3000

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Wingwrap MPS2 - 15 ÷ 240

Programs (P.)

Saving Machine EB - 6

Wingwrap MPS2 - 99

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Wingwrap MPS2 - 4 ÷ 12

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Wingwrap MPS2 - 2,0 ÷ 5,0

Tension regulations

Saving Machine EB - 5 different position from panel

Wingwrap MPS2 - 5 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Wingwrap MPS2 - Variable in 5 positions, 120% to 400%

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Wingwrap MPS2 - 230V - 50Hz - 10A - 1,12 kW

Max coil weight (kg)

Saving Machine EB - 16

Wingwrap MPS2 - 16

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Wingwrap MPS2 - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Wingwrap MPS2 - Front + Back

Type of battery

Saving Machine EB - n.a.

Wingwrap MPS2 - n.a.

Quantity of pallets per load

Saving Machine EB - n.a.

Wingwrap MPS2 - n.a.

Air blow system for automatic start

Saving Machine EB - No

Wingwrap MPS2 - Optional

Saving Machine EB

Ironman

Type

Saving Machine EB - Turntable

Ironman - Manual

Model

Saving Machine EB - Saving

Ironman - Ironman

Carriage

Saving Machine EB - EB

Ironman - MB

Standard Plate (mm)

Saving Machine EB - 1500

Ironman - n.a.

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Ironman - n.a.

Standard max weight (kg)

Saving Machine EB - 2000

Ironman - n.a.

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Ironman - n.a.

Height detention (mm)

Saving Machine EB - Automatic by photocell

Ironman - Manual

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Ironman - 2100

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Ironman - n.a.

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Ironman - 1 ÷ 15

Programs (P.)

Saving Machine EB - 6

Ironman - n.a.

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Ironman - 75 m/min

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Ironman - n.a.

Tension regulations

Saving Machine EB - 5 different position from panel

Ironman - Manually from the carriage

Pre-strech regulations

Saving Machine EB - n.a.

Ironman - n.a.

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Ironman - n.a.

Max coil weight (kg)

Saving Machine EB - 16

Ironman - 12

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Ironman - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Ironman - No

Type of battery

Saving Machine EB - n.a.

Ironman - AGM 2 x 12V - 100Ah

Quantity of pallets per load

Saving Machine EB - n.a.

Ironman - n.a.

Air blow system for automatic start

Saving Machine EB - No

Ironman - No

Saving Machine EB

Discovery A

Type

Saving Machine EB - Turntable

Discovery A - Automatic Turntable

Model

Saving Machine EB - Saving

Discovery A - Discovery-A

Carriage

Saving Machine EB - EB

Discovery A - MPS

Standard Plate (mm)

Saving Machine EB - 1500

Discovery A - 2000

Optional Plate (mm)

Saving Machine EB - 1653 - 1800 - 2200 - 2400 - 2600. 1650 TP - 1800 TP - 1650 SLIM

Discovery A - 1850 - 2150 - 2500

Standard max weight (kg)

Saving Machine EB - 2000

Discovery A - 2000

Optional Max weight (kg)

Saving Machine EB - 3000. 1200 per TP / SLIM

Discovery A - 3000 - 4000

Height detention (mm)

Saving Machine EB - Automatic by photocell

Discovery A - Automatic by photocell

Standard Wrapping height (mm)

Saving Machine EB - 2.450

Discovery A - 2.400

Optional Wrapping height (mm)

Saving Machine EB - 3200 - 2200, 2700, 3500, 3900

Discovery A - On request

Recommended for pallet quantity (pallet/shift)

Saving Machine EB - 5 ÷ 40

Discovery A - 40 - 280

Programs (P.)

Saving Machine EB - 6

Discovery A - 31

Rotation speed (rpm - m/min)

Saving Machine EB - 4 ÷ 12

Discovery A - 4 ÷ 15

Carriage speed (m/min)

Saving Machine EB - 1,3 ÷ 4,0

Discovery A - 2,0 ÷ 7,0

Tension regulations

Saving Machine EB - 5 different position from panel

Discovery A - 5 different position from panel

Pre-strech regulations

Saving Machine EB - n.a.

Discovery A - Fixed std. 150,200,250% - opt. 300%

Power

Saving Machine EB - 230V - 50Hz - 10A - 0,8 kW

Discovery A - 400V - 50-60Hz + T + N

Max coil weight (kg)

Saving Machine EB - 16

Discovery A - n.a.

Max coil dimension (mm)

Saving Machine EB - D. 260 - H.500

Discovery A - D. 260 - H.500

Fork entrance for machine transport

Saving Machine EB - Front + Back

Discovery A - Front + Back

Type of battery

Saving Machine EB - n.a.

Discovery A - n.a.

Quantity of pallets per load

Saving Machine EB - n.a.

Discovery A - n.a.

Air blow system for automatic start

Saving Machine EB - No

Discovery A - No
Carro
“Saving” está disponible con los siguientes tipos de carros:
- MB: Freno mecánico
- EB: Freno electromagnético
- eMPS Preestiramiento motorizado con relación de preestiramiento intercambiable fija

¿Por qué “Saving”?

Barato, fácil de usar, pero resistente.
Es la máquina envasadora ideal para quienes buscan máxima calidad y resultados con un presupuesto limitado.
Puede memorizar hasta 99 ciclos de envoltura.
Disponible con diferentes alturas de envoltura, platos giratorios y carros.

Contacto

Para todo tipo de información acerca de nuestras máquinas, sus funcionalidades y características técnicas, para pedir un presupuesto o porque te estás aburriendo, no dudes en contactarnos a través del formulario aquí abajo o por teléfono.
